SKU: IGS+803SM-E Category: Brand:
Click to enlarge

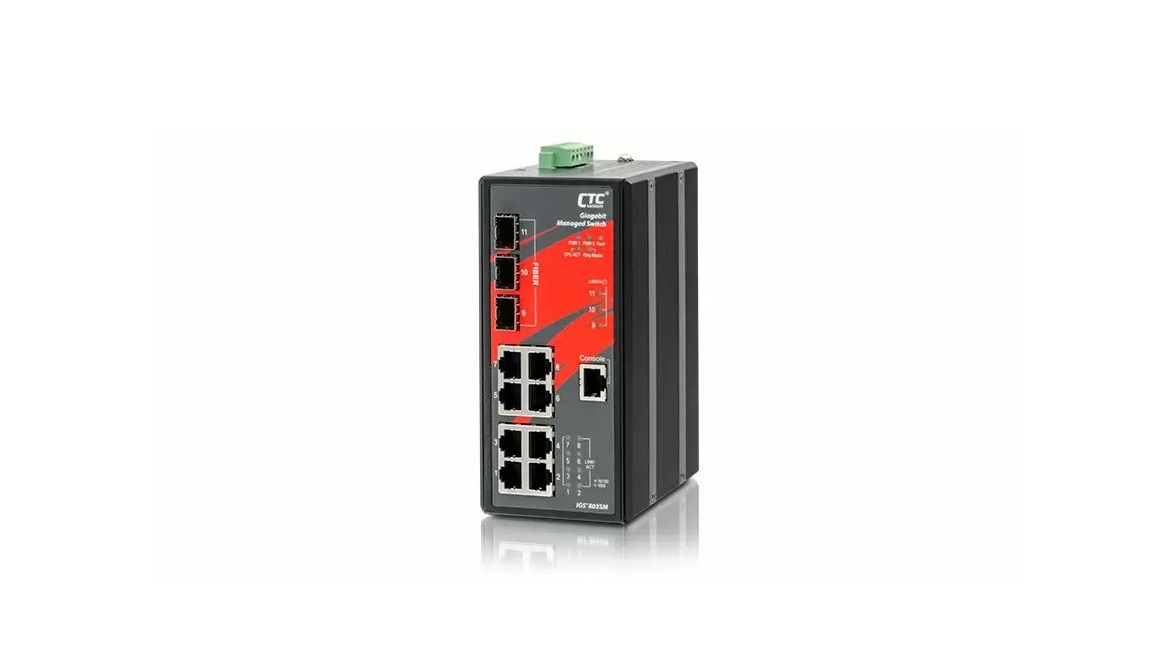

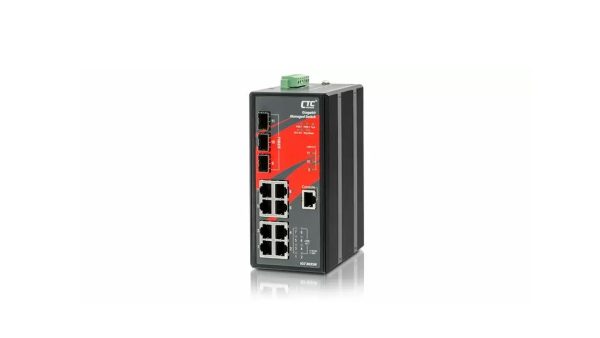

IGS+803SM-E

11Port Industrial Gigabit L2 Managed switch, 8*10/100/1000Tx + 3*100/1000SFP slot; -40C~75C



Features & Benefits

  • 11Port Industrial Gigabit Layer 2 Managed switch, with 8 Gigabit RJ45 Ports, and 3 Dual Rate 100/1000 SFP Slots
  • Supports fast network recovery with CTC Union ?-Ring <10ms in 250 nodes
  • IEEE 1588v2 PTP (hardware-based) with Ordinary, Boundary, or Transparent Clock setting option support
  • Supports CTC Union’s EMS (Element Management System) – Industrial Network Management Sofware suite
  • Dual DC inputs 12/24/48/-48VDC
  • Extended Operating Temperature: -40?C~75?C

$1,400.00

2 in stock

Quantity Inquiry

Further Inquiry

Please feel free to fill in below for any further inquires or Sales Quote.

First Name
Last Name

Description

Overview

Introduction

The CTC Union IGS+803SM is an 11Port Din-Rail type and hardened Edged Layer 2 Gigabit Managed Switches. It comes up high MTBF >600K+ hours, and supports multiple network redundancy protocols for fast network recovery time<50ms with STP/RSTP, ERPS; and ?-Ring, ?-Chain <10ms with 250-nodes network for 24/7 non-stop networking. It obtains CE, FCC, UL certification, high EMS support, and passed the N50121-4 and NEMA TS2  heavy shock/vibration testing for any harsh environment and mission critical applications; such as Power Utility, Water Waste Water, ITS, Critical Manufacturing, and outdoor facility security industries.



Weight 2 lbs
