SKU: TN-5516A-8PoE-WV-CT-T Category: Brand:
Click to enlarge

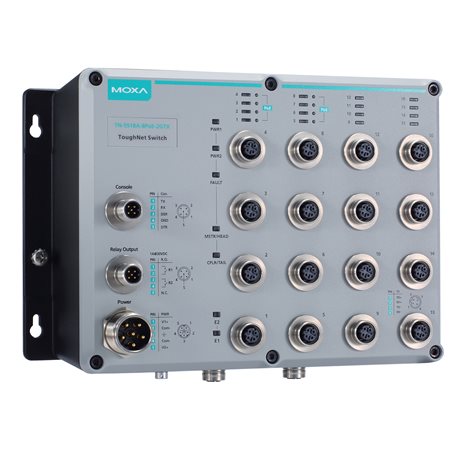

TN-5516A-8PoE-WV-CT-T

16Port Industrial IP54 Ethernet PoE+ Layer 2 Managed switch with 16*10/100Tx (8*30W PoE+) M12 connectors, conformal coating, -40 to 75C.



Features and Benefits

  • Up to 2 Gigabit ports with optional bypass relay function
  • 8 IEEE 802.3at/af compliant PoE and Ethernet combo ports
  • Isolated power with 24 to 110 VDC power supply range
  • Complies with all EN 50155 mandatory test items
  • Network Redundancy support: Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP

$3,154.00

2 in stock

Quantity Inquiry

Further Inquiry

Please feel free to fill in below for any further inquires or Sales Quote.

First Name
Last Name

Description

Overview

Introduction

The Moxa TN-5500A Series Ethernet switches provide 8 to 16 Fast Ethernet M12 ports with or without 8 IEEE 802.3at/af compliant PoE (Power-over-Ethernet) ports, and 2 ports on the down side to provide the Gigabit Ethernet interface with an optional bypass relay function.

The option model with 8 PoE ports provide PoE power up to 30 watts.

This Series supports a wide power input range of 24/36/48/72/96/110 VDC, and -40 to 75?C operating temperature with IP54 rated waterproof enclosure design.

TN-5500A Series Ethernet switches are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.
